Product Description

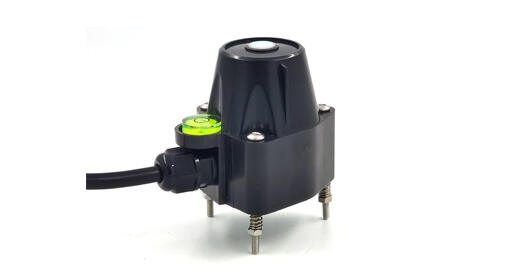

L-LUX(1) ambient light sensor, or illuminance sensor, measures the ambient illuminance to 200000lux. Sensor is calibrated and offers excellent accuracy and consistency. The sensor is applicable for science research, greenhouse,indoor farming,weather station etc.
Features
■ Measurement range to 200000lux
■ Water proof IP66 for environment with extreme humidity
■ High accuracy and consistency with excellent stability
Technical Parameters
| Parameter | Specification | ||
| Power Supply | DC 3.9–30 V | DC 12–30 V | DC 3.9–30 V |
| Power Consumption | 7 mA @ 24 V | 30 mA @ 24 V | 7 mA @ 24 V |
| Signal Output | 0–2 V (≈0 Ω) | 4–20 mA(<500 Ω load) | RS485 Modbus-RTU |
| Illuminance Ranges | 0–2,000 / 5,000 / 10,000 / 20,000 / 100,000 Lux (±5%); 0–200,000 Lux (±6%) | ||
| Accuracy | ±5% (0–100,000 Lux); ±6% (200,000 Lux) | ||
| Resolution | 1 Lux | ||
| Direction Error (Cosine) | 30° ±3%, 60° ±6%, 80° ±24% | ||
| IP Rating | IP66 | ||
| Operating Temperature | -40 ~ 85 °C | ||
| Cable Length | 2 meters (customizable) | ||
| Dimensions | 3″× 2.2″× 2.3″ | ||
