Product Description

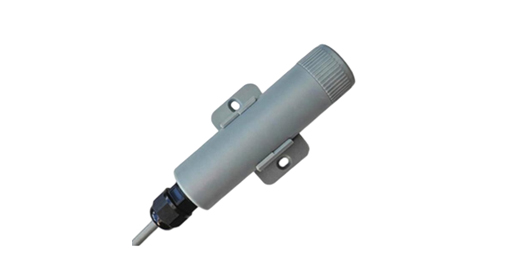

The MOX-based multi-gas VOC sensor detects ethanol, toluene, hydrogen, and oxidizing gases with high sensitivity. It intelligently calculates TVOC-eq, CO2-eq, and various AQIs with built-in temperature/humidity compensation. Perfect for HVAC demand-controlled ventilation, indoor air quality monitoring, cooker hoods, air purifiers, and laboratory applications.
Features
■ Integrated with ENS161 multi-gas sensor
■ TVOC,CO2 and multiple AQI(Air Quality Index)outputs
■ Small size with high accuracy with excellent stability
■ Wall mounting/Hanging installation
Technical Parameters
| Parameter | Range | Accuracy | Resolution |
| TVOC | 0-65000 ppb | ±15% | 1 ppb |
| CO₂ | 400-65000 ppm | ±20% | 1 ppm |
| AQI-U | 1-5 | 1-5 | 1 |
| AQI-S | 0-500 | 0-500 | 1 |
| Temperature | -40-80℃ | ±0.2℃ | 0.01℃ |
| Humidity | 0-100% | ±1.8%RH | 0.0001 |
| Operating Temperature | -40～80℃ – – | ||
| Operating Humidity | 0-95% non-condensing | ||
| IP Rating | IP50 | ||
| Installation | Wall mounting | ||
| Cable Length | 2 meters or Customize | ||
| Power Supply | DC 5-28V | ||
