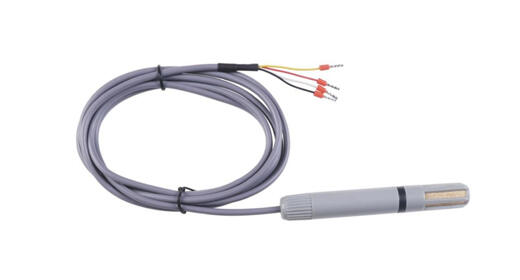

A-THP Ambient Temp. Humi. VPD Sensor
Reference Price
US$77.5/PC
Product Description
Temperature and humidity sesor is based on a precision SENSIRION® sensor. An additional BOSCH®MEMS chip measures barometric pressure. Each sensor is individually factory- calibrated. With dimensions of only 108mm x 16mm, the sensor can easily be fitted into many standard radiation shields and field application like canopy monitoring, greenhouse monitoring,smart agriculture,reference evapotranspiration calculations,etc
Features
■ Including dew, frost point, vapor pressure, vapor concentration, etc measurement.
■ Small size with high accuracy with excellent stability
■ Cleanable 10um Copper sintering filter cap
■ Excellent price-performance ratio
Technical Parameters
| Parameter | Specification |
| Ambient Temperature | Range: -40°C~125°C, Resolution: 0.01°C, Accuracy: ±0.1°C (SHT45); ±0.2°C (SHT40) |
| Relative Humidity | Range: 0~100%RH, Resolution: 0.01%RH, Accuracy: ±1.0%RH (SHT45); ±1.8%RH (SHT40) |
| Barometric pressure | Range:300~1100mbar; Resolution: 0.1mbar; Accuracy: ±0.15mbar(Relative Accuracy),±1mbar(Absolute Accuracy) |
| Working Environment | -40°C~80°C, No condensing |
| IP Rating | IP56 |
| Power Supply | DC4.5~18V |
| Cable Length | 2 meters or Customize |
| Dimension | Sensor Body: 110*16mm |
