Industrial Online N-PH(1) Nutrient PH Sensor with RS485

Industrial Online pH Sensor with patented ultra-slow leaking reference (>20 months stable outflow at ≥100 kPa) delivers twice the lifespan of ordinary electrodes. It is perfect for water quality monitoring, chemical processes, and harsh industrial applications, smart agriculture, vertical farming, indoor farming,etc

Features

1. ±0.1 accuracy
2. dual high-impedance anti-interference design,
3. automatic NTC compensation,
4. IP68 waterproof,
5. 3/4″ NPT immersion mounting

Technical Parameters

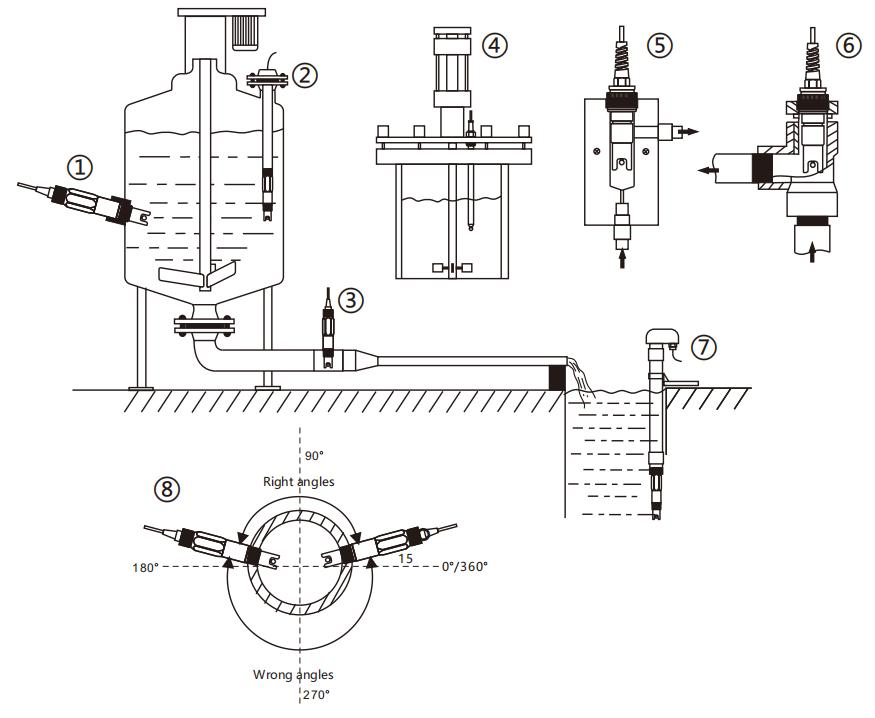

Installation

①side wall installation

②top flange installation

③pipe installation

④top installation

⑤flow cell installation

⑥pipe installation

⑦immersion installation

FAQ:

1: Which should be adjusted first, pH or EC?
Usually adjust pH first, then EC. As pH adjustment will affect EC, while EC adjustment has less impact on pH.

2: Can multiple tanks be monitored simultaneously?
Yes. Install one sensor in each tank and connect them to data logger via RS485.

3: How long does the online pH sensor electrode last?
Usually 6-12 months. Approximately 6-9 months in nutrient solution environment, and over 12 months in clean water.

4: Is customization supported?
Yes. Please tell us electrode length, mounting thread, output signal, measurement range, etc. you’d like to customize.
