Product Description

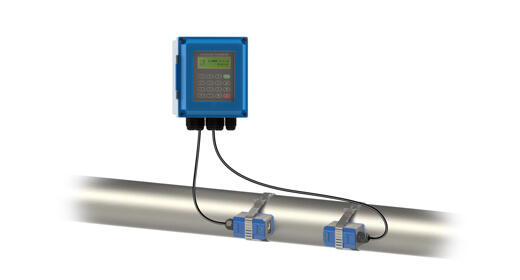

Clamp-on Ultrasonic Flowmeter: No pipe cutting, non-contact transit-time technology. Accuracy ±1%, repeatability 0.2%. Supports DN15–DN6000 pipes, low-voltage multi-pulse design for superior accuracy and longevity. Built-in data logger records 64 days/months/5 years. Easy installation, reliable performance for all industrial flow applications.
Optional transducer
◆ TS-1 clamp-on type transducer, pipe size from DN15-100mm
◆ TM-1 clamp-on type transducer, pipe size from DN50-1000mm
◆ TL-1 clamp-on type transducer, pipe size from DN300-6000mm
◆ HTS-1 clamp-on type transducer, pipe size from DN15-100mm
◆ HTM-1 clamp-on type transducer, pipe size from DN50-1000mm
Technical Parameters
| Category | Parameter | Specification |
| Main Unit | Accuracy | Better than ±1% |
| Repeatability | Better than 0.2% | |
| Principle | Transit-time | |
| Measurement Period | 500 ms | |
| Display | LCD with backlight (flow/heat, velocity, time, etc.) | |
| Output | Analog | 4–20 mA or 0–20 mA (0–1 kΩ, 0.1% accuracy) |
| OCT | 1–9999 Hz | |
| Relay | >20 types (no flow, reverse flow, etc.) | |
| Serial | RS485 | |
| Input | Analog Inputs | 3 channels |
| PT100 | 3-wire (optional for heat measurement) | |
| Data Logging | Records | Last 64 days / 64 months / 5 years |
| Power events | Last 64 on/off events | |
| Pipe | Material | Steel, stainless, cast iron, cement, copper, PVC, aluminum, FRP etc. |
| Diameter | DN15 – DN6000 | |
| Straight Section | Upstream ≥10D, Downstream ≥5D, ≥30D from pump | |
| Liquid | Types | Water, seawater, sewage, acid/alkali, oil, etc. (single uniform liquid) |
| Temperature | -30 ~ 90 °C (standard); -30 ~ 160 °C (high-temp) | |
| Turbidity | ≤10,000 ppm, little bubble | |
| Flow Direction | Bi-directional, net flow/heat | |
| Environment | Main Unit Temp | -30 ~ 80 °C |
| Transducer Temp | -40 ~ 110 °C (-40 ~ 160 °C high-temp) | |
| Humidity | Main unit 85% RH; Transducer immersible (<3 m depth) | |
| Cable & Communication | Cable | Twisted pair, max 500 m (RS485 up to 1000 m) |
| Protocols | MODBUS, M-BUS, Fuji extended, others | |
| Power | Supply | AC 220 V or DC 24 V |
| Consumption | < 1.5 W |
